Millicell® ERS 3.0 Standard Electrode，1ST，MERS03SAP，密理博

General description

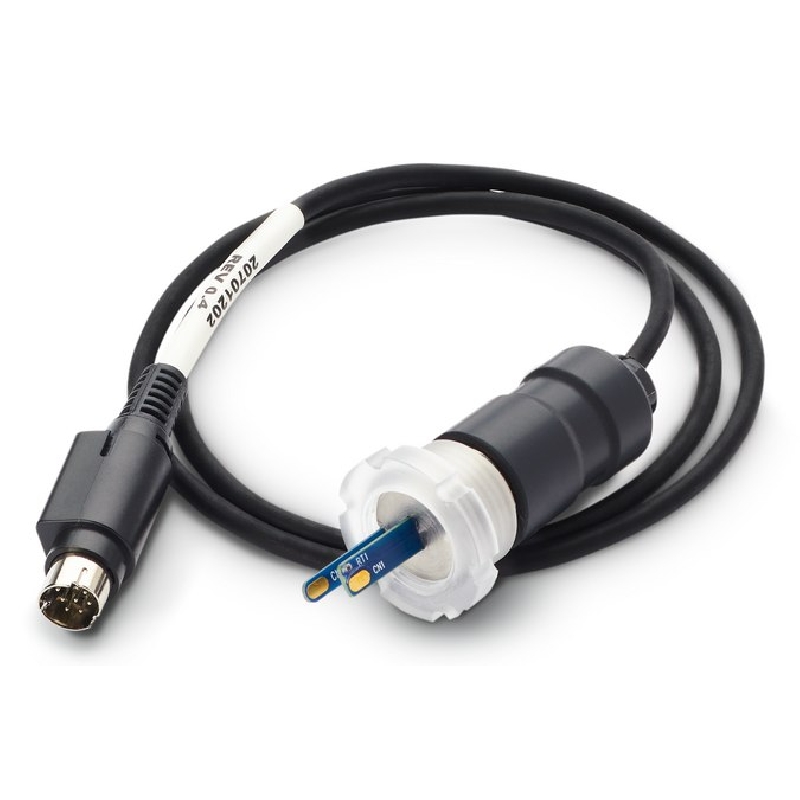

The Millicell^® ERS 3.0 Digital VoltOhmMeter reliably measures membrane potential and resistance of epithelial and endothelial cells in culture. This device qualitatively measures cell monolayer health and cell confluence. The Standard Electrode Probe fits into 3 different sizes of membrane inserts and receiver plates (6-well, 12-well, and 24-well). The Standard Electrode Probe is specially designed to be adjustable so that the depth of the electrode reaches the bottom of the well plate while the adjustable ring rests on top of the well. An Electroless Nickle Immersion Gold (ENIG) plate on each external facing electrode tip measures voltage. The small size of the electrodes enables easy measurement of transepithelial voltage and the resistance of cells grown on microporous membranes.

Application

To study endothelial/epithelial barrier models (like the blood-brain barrier models, gastrointestinal tract models, and pulmonary models), To study efficacy of drugs, To evaluate pharmacological toxicities

Features and Benefits

• Ergonomic standing in-well probe
• Adjustable electrode, compatible with a wide variety of cell culture inserts and plates
• Built-in sensor to measure and record media temperature
• Resistance range of 0 – 100 kΩ, with 1 Ω resolution
• Demonstrates low noise, greater resolution, and high accuracy

Legal Information

Millicell is a registered trademark of Merck KGaA, Darmstadt, Germany
