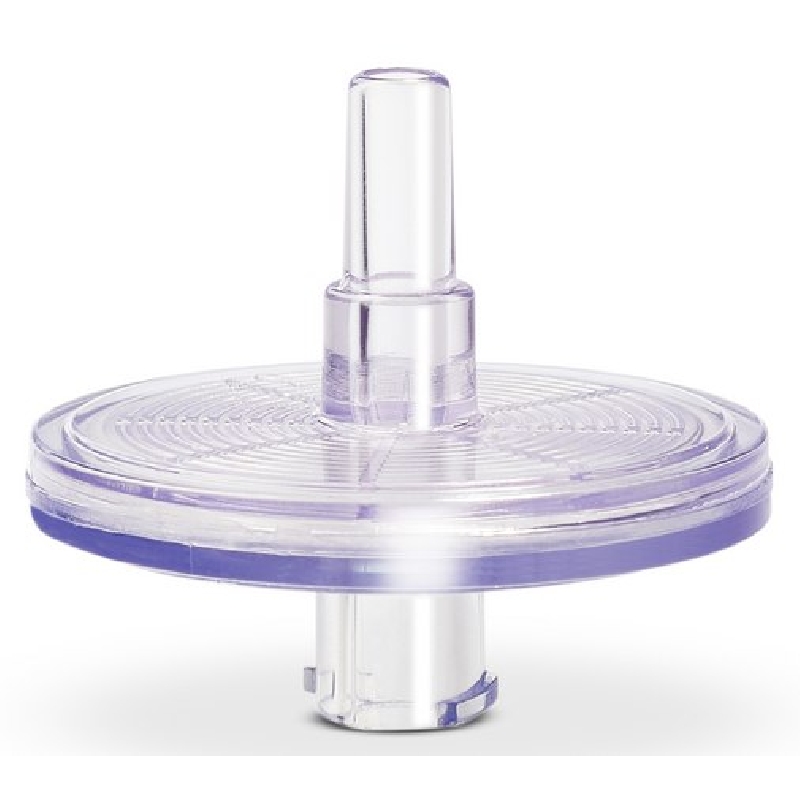

Millex™ PVDF syringe filter，50PKG，SLSV0R25LS，密理博

General description

The bi-directionally supported Millex^™-SV is a low-binding, syringe-operated filter for the filtration of aqueous, proteinaceous solutions where minimal sample loss is desired. It will remove particles, precipitates, and undissolved powders larger than 5.0 μm.

Application

Syringe filter for particle or aggregate removal from protein solutions such as monoclonal antibodies, extracted cellular or tissue-based solutions, hormones, and reactive materials.

Biochem/physiol Actions

Materials

Membrane: Hydrophilic Durapore^® polyvinylidene fluoride (PVDF), type SV
Pore size: 5.0 µm
Housing: Polyvinyl chloride (PVC)

Dimensions

Inlet to outlet: 25 mm (0.98 in.)
Diameter: 29 mm (1.14 in.)
Filtration: area 4 cm² (0.62 in2)
Temperature limit: 45 °C (113 °F)
Pressure limit at 21 °C: 5.2 bar (75 psi) inlet and differential
Filtration volume: 1–100 mL
Hold-up volume: ≤ 0.1 mL after air purge
Sterilization method: Ethylene oxide gas
Connections: Female Luer-Lok^® inlet, male Luer-slip outlet
Flow rate at 2.1 bar (30 psi), 21 °C: ≥ 600 mL/min
Bubble point (water): ≥ 3 psi
Color: clear inlet, clear outlet

Features and Benefits

• Single use only
• Low protein binding
• Non-pyrogenic and non-toxic

Legal Information

Durapore is a registered trademark of Merck KGaA, Darmstadt, Germany
Luer-Lok is a registered trademark of Becton-Dickinson & Co.
Millex is a trademark of Merck KGaA, Darmstadt, Germany
