产品介绍
Product Description
General description

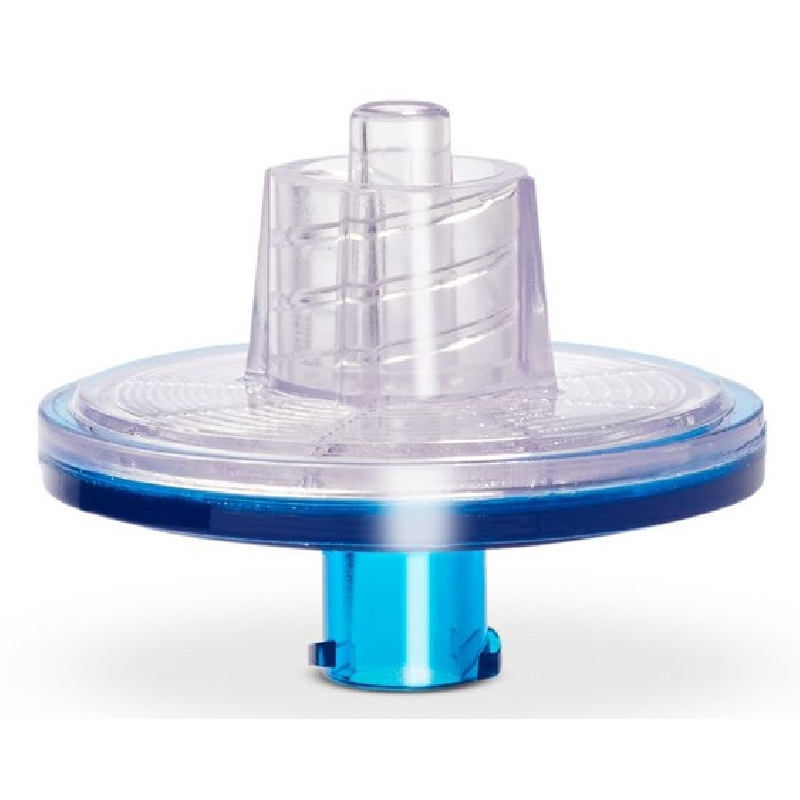

The Dualex-Ultra Transducer Protector prevents fluids from damaging sensitive transducer monitoring devices. Dualex-Ultra Tranducer Protectors are equipped with Luer-Lok® connectors, making them ideal for use in high-flux systems.
Application
In-line air and gas filter
Features and Benefits
- Single use
- Will not wet out with oil or water
- Non-pyrogenic and non-toxic
Other Notes
- Organism Retention: Microorganism
- Mode of Action: Filtration (size exclusion)
- Application: General laboratory filtration
- Intended Use: Retention or removal of biological contaminants
- Instructions for Use: Please refer to the Directions for Use and Proceduresections of Dualex-Ultra Transducer Protector user guide
- Storage Statement: Store in dry location
- Disposal Statement: Dispose of in accordance with applicable federal, state and local regulations.
Legal Information
null
DURAPEL is a trademark of Merck KGaA, Darmstadt, Germany
Luer-Lok is a registered trademark of Becton-Dickinson & Co.
Millex is a trademark of Merck KGaA, Darmstadt, Germany
技术参数
Specifications
| Quality Level | 300 |
| material | PVC housing,PVDF membrane (hydrophobic) |
| sterility | ethylene oxide treated,sterile |
| product line | Millex™ |
| shelf life | 3 yr |
| feature | hydrophobic |
| packaging | pack of 50 ea (individually blister packed) |
| manufacturer/tradename | Millex™ |
| parameter | ≥0.4 L/min air flow rate at 1 psi,1.7 bar max. pressure (25 psi),45 °C max. temp. (113 °F) |
| technique(s) | gas filtration: suitable,sterile filtration: suitable,vent filtration: suitable |
| diam. | 25 mm |
| filtration area | 4 cm2 |
| housing diam. | 29 mm |
| inlet to outlet H | 23 mm |
| color | blue inlet, clear outlet |
| matrix | Durapel™ |
| pore size | 0.22 μm |
| input | gas |
| fitting | female Luer-Lok® inlet, male Luer-Lok® outlet |
